LV switchboards, control panels, fire pump skids, water treatment and metering packages: engineered in 3D, built and tested, then integrated with your plant.
Representative engineering models of the packages we deliver. Drag to rotate, scroll or pinch to zoom, and switch models with the tabs. Tags follow ISA and IEC 81346 naming, as on our drawings.
3D models are representative engineering models, not a specific delivered unit.
Built in-house or with approved manufacturers, always delivered with the drawings, test records and software your maintenance team needs.
Power control centres, motor control centres, distribution boards, ATS and VFD panels, designed in EPLAN to IEC 61439 using type-tested switchgear.

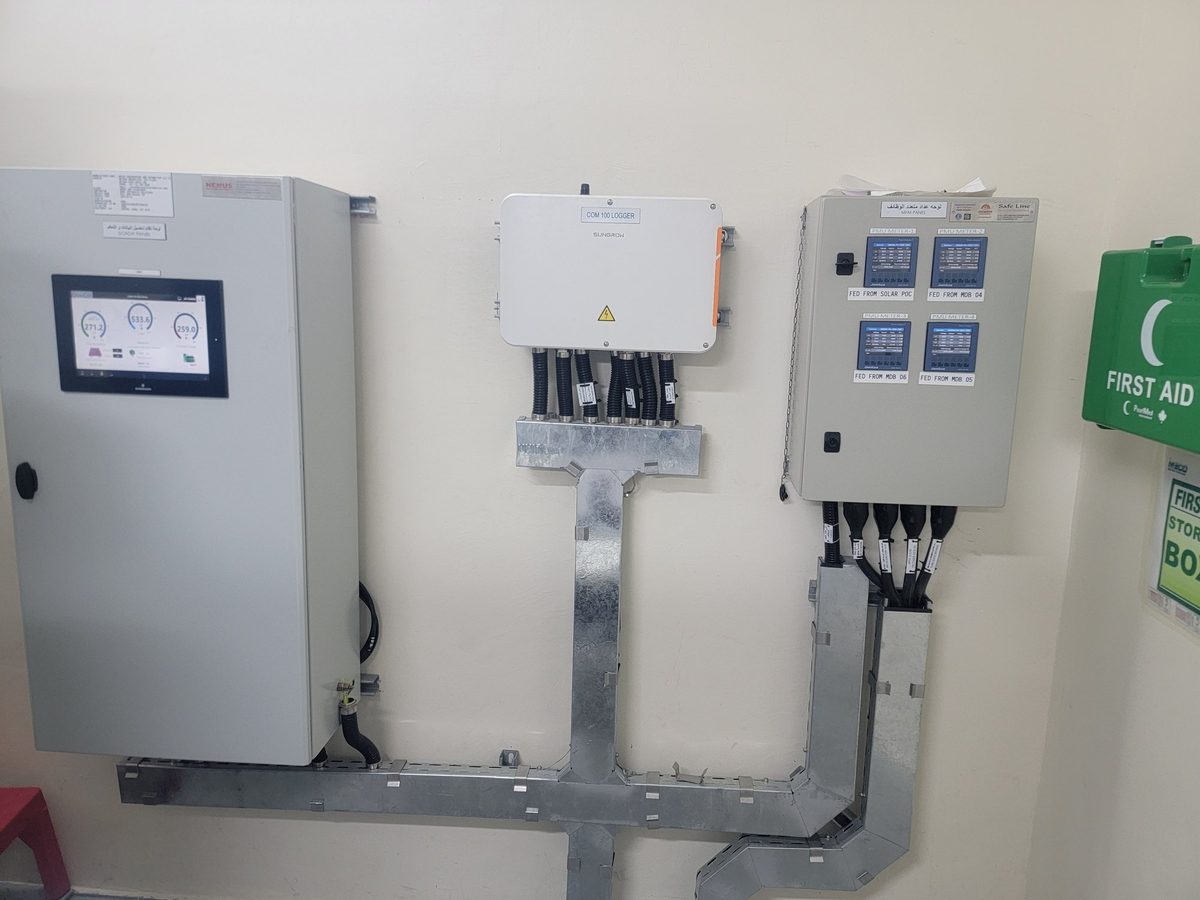

PLC, RTU, DCS marshalling, synchronising and turbine control panels, built, tested and documented in-house.

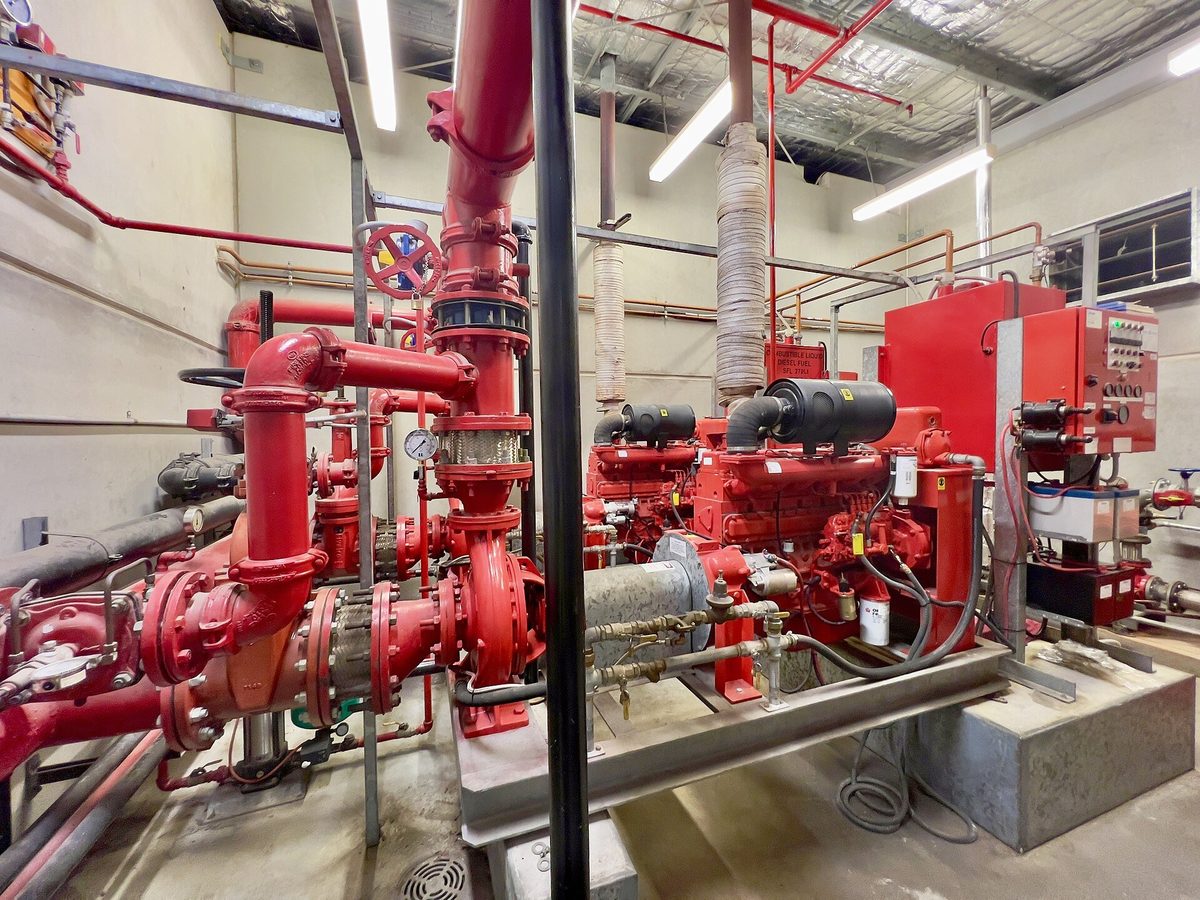

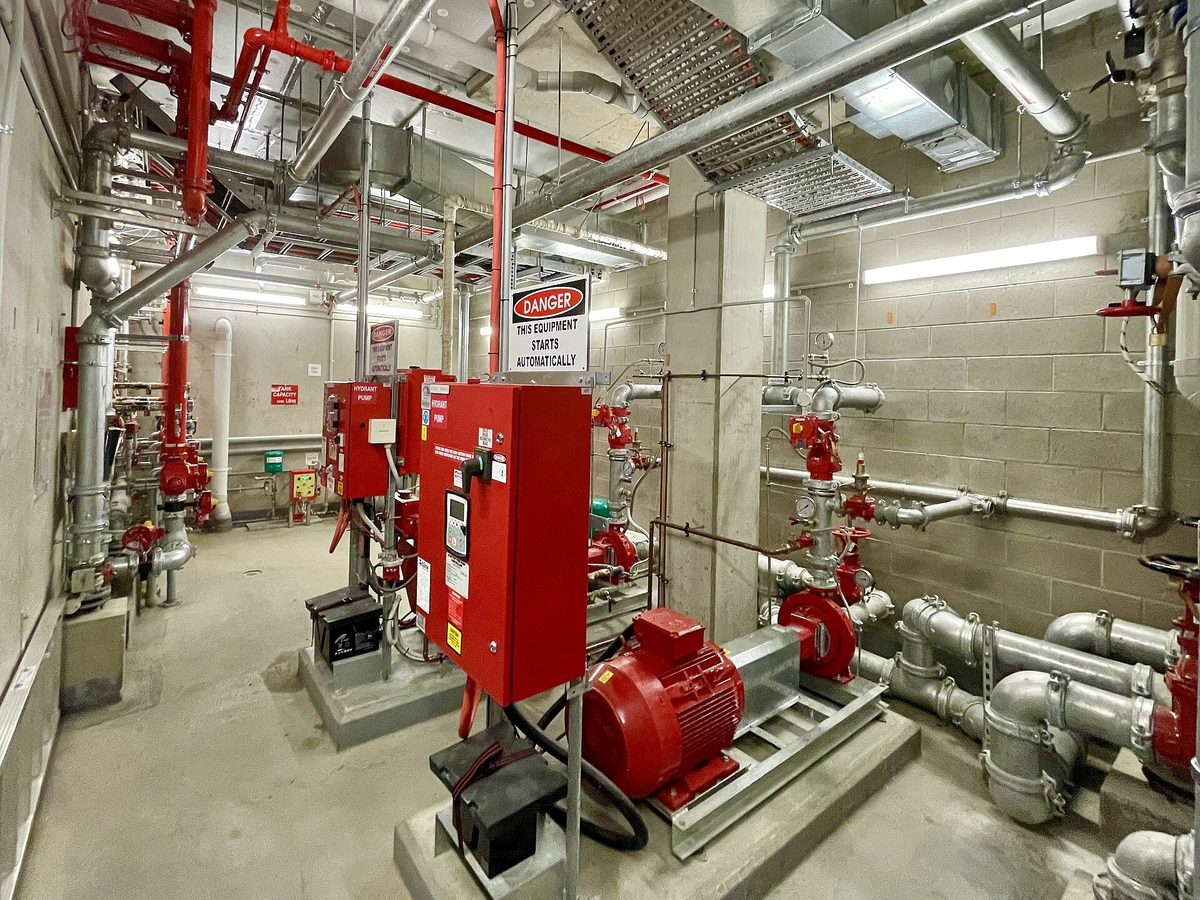

Fire pump packages and fire protection systems with their controllers and detection, integrated with the plant SCADA.

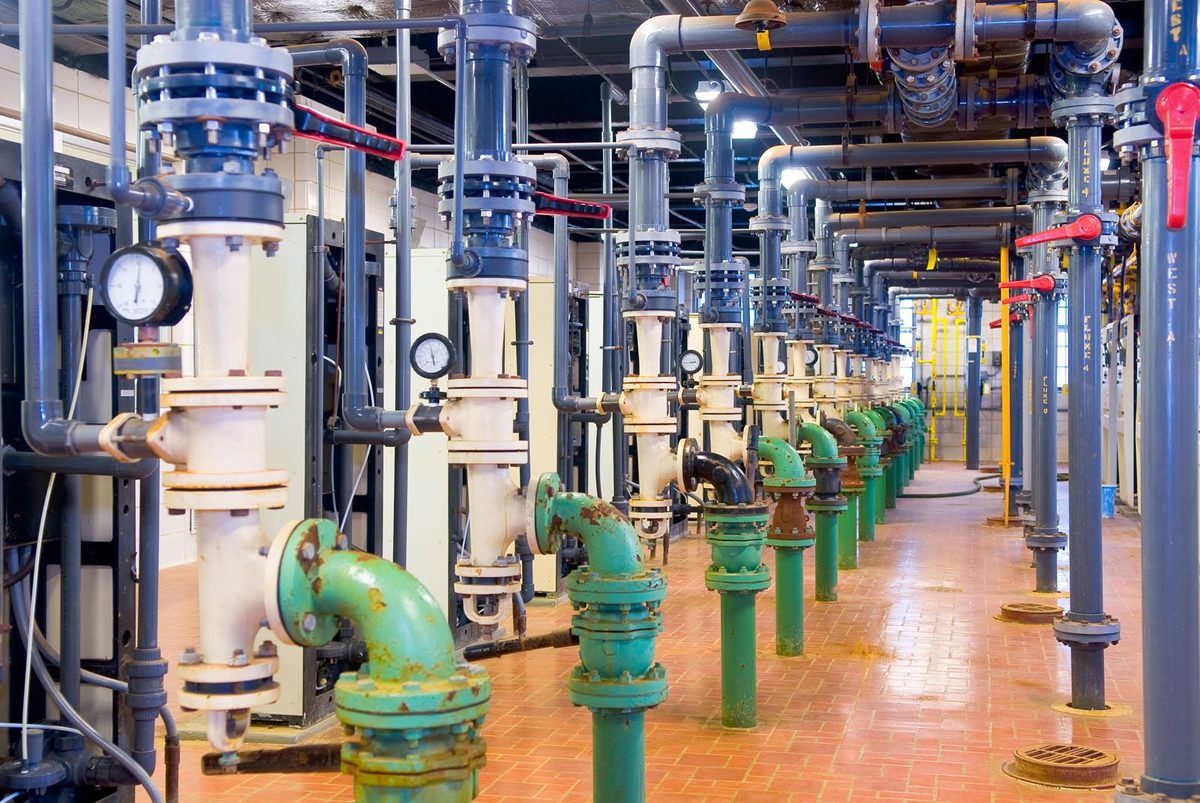

Control and electrical packages for RO, filtration, dosing and pumping plants, from the skid panel to the central SCADA.
Fiscal and custody transfer metering, analyser shelters and chemical injection skids, with flow computers and loop testing.

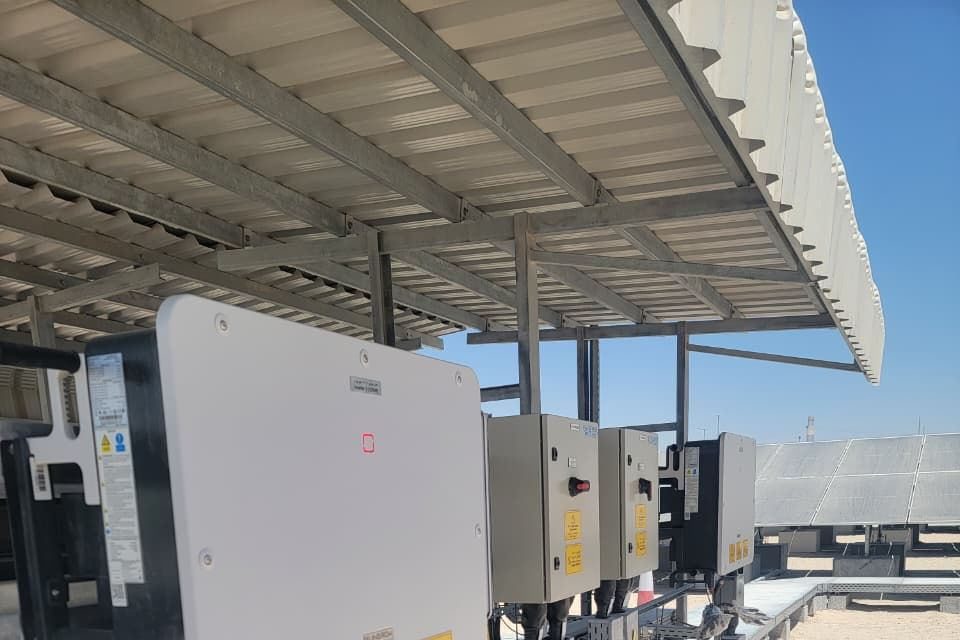

Hybrid controllers, AC distribution and battery integration for camps, remote sites and wells.
One team carries each package from the first schematic to the signed SAT sheet, with the client witnessing the factory test.
EPLAN schematics and 3D layout, approved by the client
Approved-vendor switchgear, PLCs and instruments
Assembly, wiring and labelling in the workshop
Factory acceptance test witnessed by the client
Delivery, installation and termination on site
Site acceptance, handover and training
Send the single-line diagram, P&ID or datasheet. We will come back with a design, a programme and a price.
